40-4080-Lite - 40mm X 80mm Lite T-Slotted Profile - Six Open T-Slots

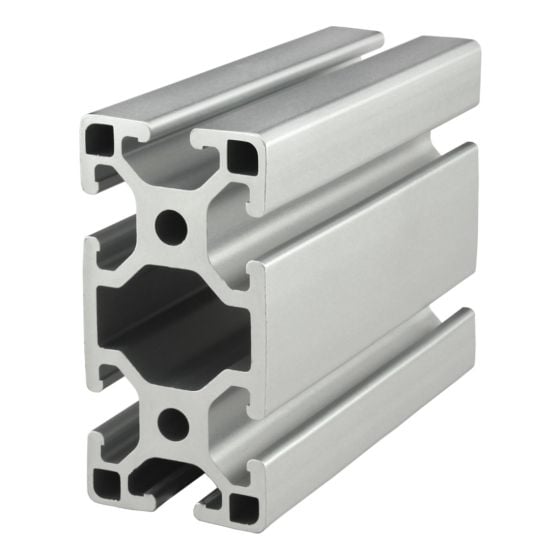

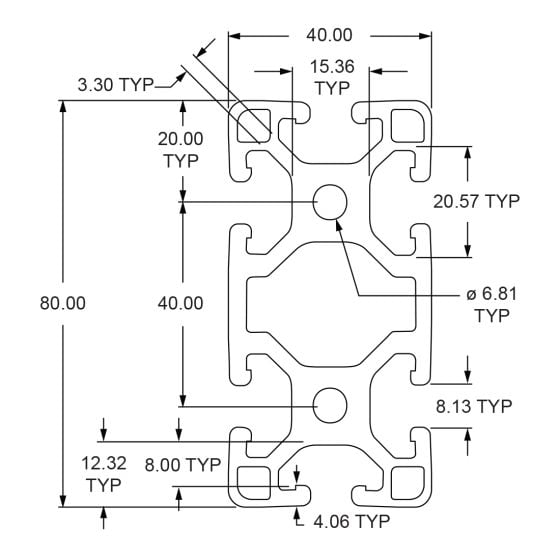

40-4080-Lite is a 40mm x 80mm metric 40 series rectangular T-slot profile with six open T-slots, two on each 80mm face and one on each 40mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4080-Lite profile is compatible with 40 series fasteners. The center cavity of the profile can be pressurized up to 1.034 N/mm2 (150 psi), lending itself to work spaces, machine guards, displays and panel mount racks.



Series 40 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
Drop Lock 2°
Moment of Inertia - IX 71.8926 cm⁴
Moment of Inertia - IY 18.7791 cm⁴
Surface Area 12.532 Sq cm
Yield Strength 172.37 N / Sq mm
Modulus of Elasticity 68.947.6 N / Sq mm
Weight lbs 0.1893 per inch
Weight 0.189300
