40-4040 - 40mm X 40mm T-Slotted Extrusion

40-4040-3M-KIT
  • $138.24


Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

40-4040 - 40mm X 40mm T-Slotted Extrusion

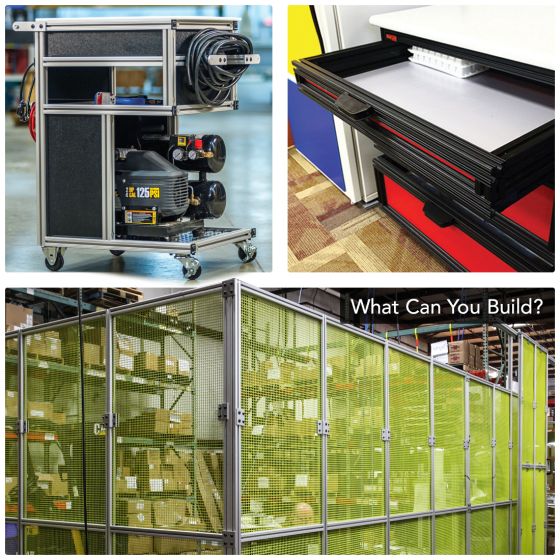

40-4040 is a 40mm x 40mm metric 40 series square T-slot profile with four open T-slots, one on each 40mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4040 profile is compatible with all 40 series fasteners. This profile is the most heavy-duty in the 40-4040 profile family and lends itself to clean room applications, guards, enclosures, or workstations. The four open T-slots enable access from any direction and are useful for mounting accessories.

NOTE: Please check the cross-sectional diagram to ensure the profile meets your needs as we are aware of other manufactures using their own 40mm x 40mm profile that are not compatible with 80/20 profiles.

USA Made from 80/20 Inc

Series 40 Series
Material Aluminum
Grade 6005A-T61
Finish Anodize
Color Clear
Drop Lock
Moment of Inertia - IX 13.787 cm⁴
Moment of Inertia - IY 13.797 cm⁴
Surface Area 8.742 Sq cm
Yield Strength 241.1 N/ Sq. mm
Modulus of Elasticity 70,326.5 N/Sq. mm
Weight lbs 0.1321 per inch
Weight 0.1321
