 40-4040-Lite- 40mm X 40mm Lite T-Slotted Profile - Four Open T-Slots

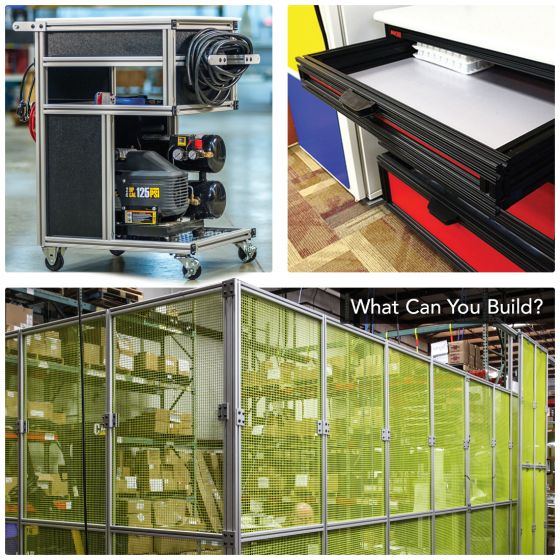

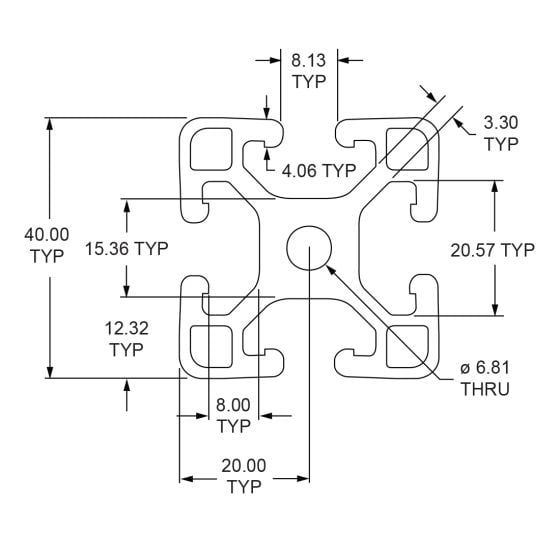

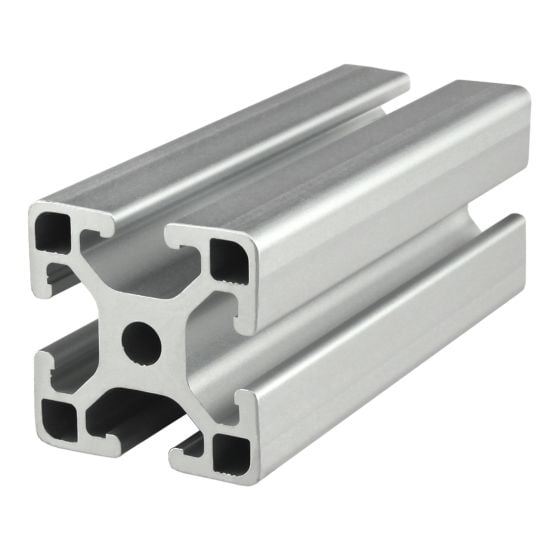

40-4040-Lite is a 40mm x 40mm lite metric 40 series square T-slot profile with four open T-slots, one on each 40mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4040-Lite profile is compatible with all 40 series fasteners. This profile lends itself to machine guards, enclosures, work benches, or displays. The four open T-slots enable access from any direction and are useful for mounting accessories.

Series 40 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
Drop Lock 2°
Moment of Inertia - IX 9.3983 cm⁴
Moment of Inertia - IY 9.3983 cm⁴
Surface Area 6.608 Sq cm
Yield Strength 172.37 N / Sq mm
Modulus of Elasticity 68.947.6 N / Sq mm
Weight lbs 0.0998 per inch
Weight 0.099800
