4332 - 15 Series 2 Hole - Gusseted Inside Corner Bracket

4332
  • $8.23


Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

4332 - 15 Series 2 Hole - Gusseted Inside Corner Bracket

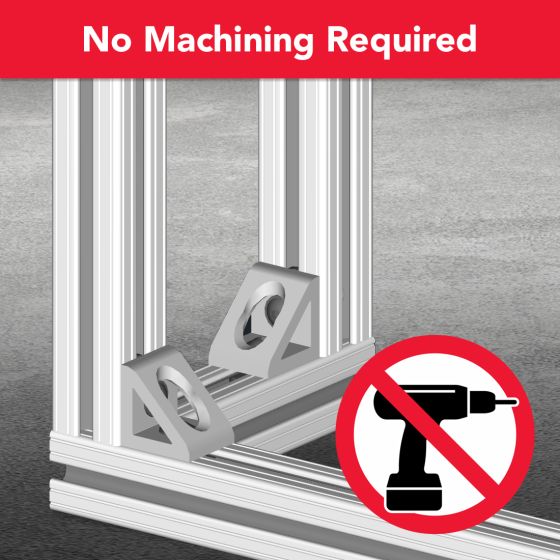

The 24332 15 Series 2 Hole - Gusseted Inside Corner Bracket hole - gusseted inside corner bracket is a strong, external fastening method that creates a 90 degree connection. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The shape of the gusset provides extra material, strengthening the connection. The 2 hole - gusseted inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.

USA Made from 80/20 Inc

NOTE: DOES NOT INCLUDE HARDWARE

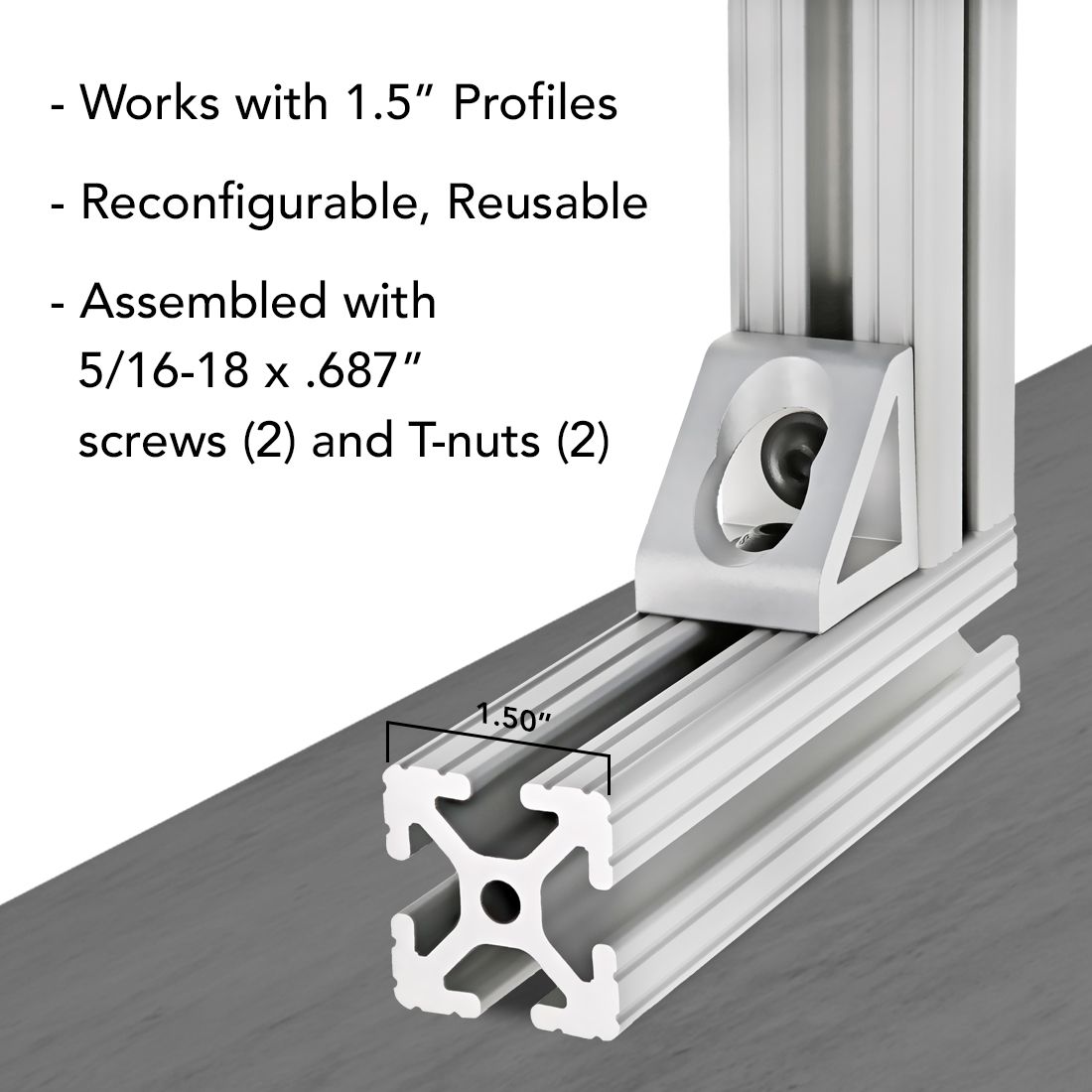

Suggested Hardware: 15 Series, Part #3320, Qty: 2, Bolt Assembly: 5/16-18 x .687" Black FBHSCS with Slide-In Economy T-Nut - Offset Thread

Series 15 Series, Ready Tube
Material Aluminum
Grade 6105-T5
Finish Anodize
Color Clear
A 1.500”
B 1.500”
C .250"
D .656"
E .750"
F 1.312"
G .750"
H .328"
Weight 0.1110
