4113 10 Series 4 Hole - Wide Inside Corner Bracket

4113
  • $5.47


Due to COVID-19, orders may take longer then normal to ship

10 S 4 Hole Inside Corner Bracket

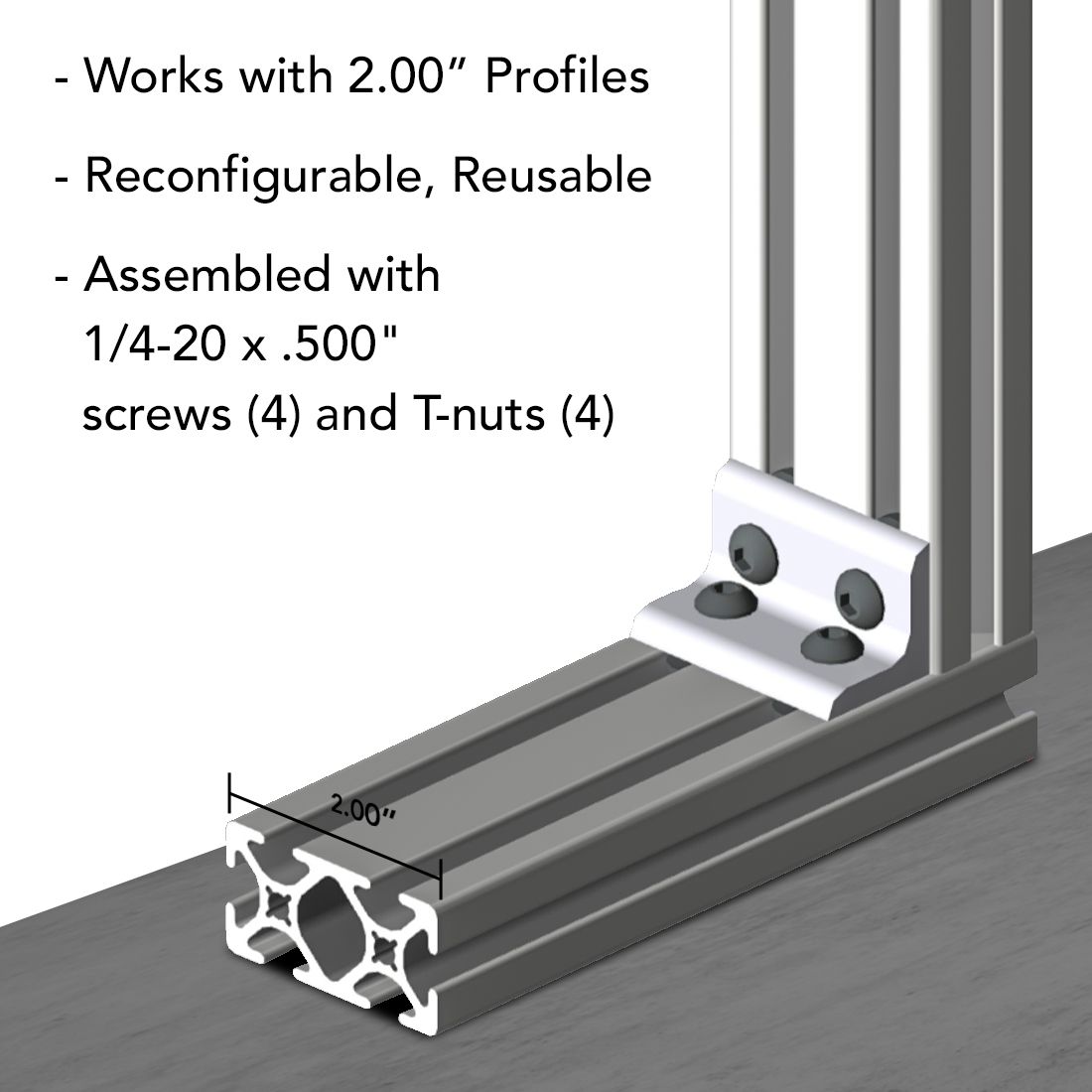

The 4 hole - wide inside corner bracket is an external fastening method that creates a 90 degree connection. There are two adjacent holes on each side of the bracket. This fastener requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The 4 hole - wide inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.

USA Made from 80/20 Inc

NOTE: DOES NOT INCLUDE HARDWARE

Suggested Hardware:
10 Series, Part #3061, Qty: 4, 1/4-20 x .500" Button Head Socket Cap Screw (BHSCS)
10 Series, Part #3382, Qty: 4, 1/4-20 Slide-in Economy T-Nut - Centered Thread

Series 10 Series
Material Aluminum
Grade 6105-T5
Finish Anodize
Color Clear
A 1.000"
B 1.000”
C .188"
D .500"
E .438”
F 1.000"
G 1.875"
H .281"
Weight 0.0540
