4107 - 10 Series 2 Hole - Straight Flat Plate

4107
  • $4.59


Due to COVID-19, orders may take longer then normal to ship

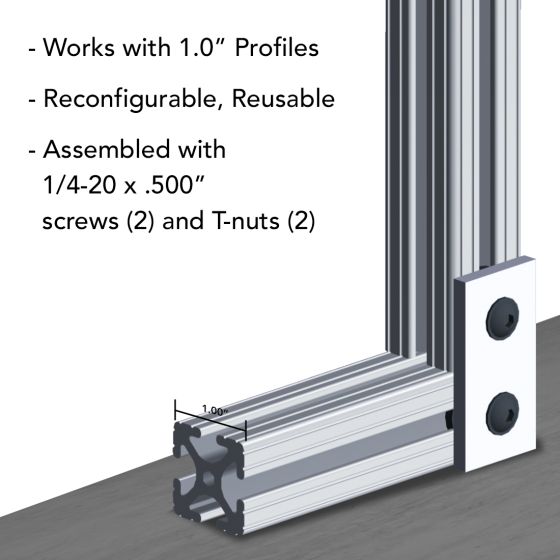

10 Series 2 Hole - Straight Flat Plate

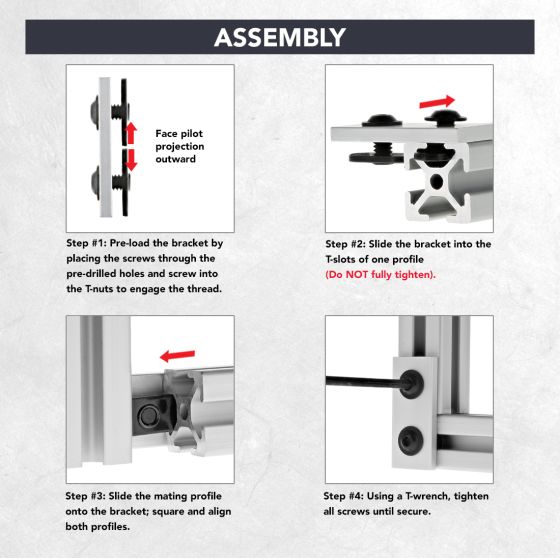

The 2 hole - straight flat plate is an external fastening method that requires no machining services. It is a durable connection that can be easily repositioned and reused. This flat plate can provide infinite positioning along the profile T-slot, allowing for a large degree of adjustability. It engages the 2-degree drop-lock feature for most profile series when the assembly bolts are tightened to the required torque, creating a strong connection.Tip: Pre-load your hardware prior to connecting profiles to simplify your assembly and save time.

Made in USA by 80/20 Inc

NOTE: Hardware not included, suggested option below:

Series Part Number Qty Description
3321 2

Bolt Assembly: 1/4-20 x .500" Black FBHSCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc

Series 10 Series
Material Aluminum
Grade 6105-T5
Finish Anodize
Color Clear
A 2.000”
B .875”
C 1.000”
D .500”
E .438”
F .257”
G .188”`
Weight 0.0290
