3395 - 10 Series Anchor Fastener Assembly

3395
  • $5.60


Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

3395 - 10 Series Anchor Fastener Assembly

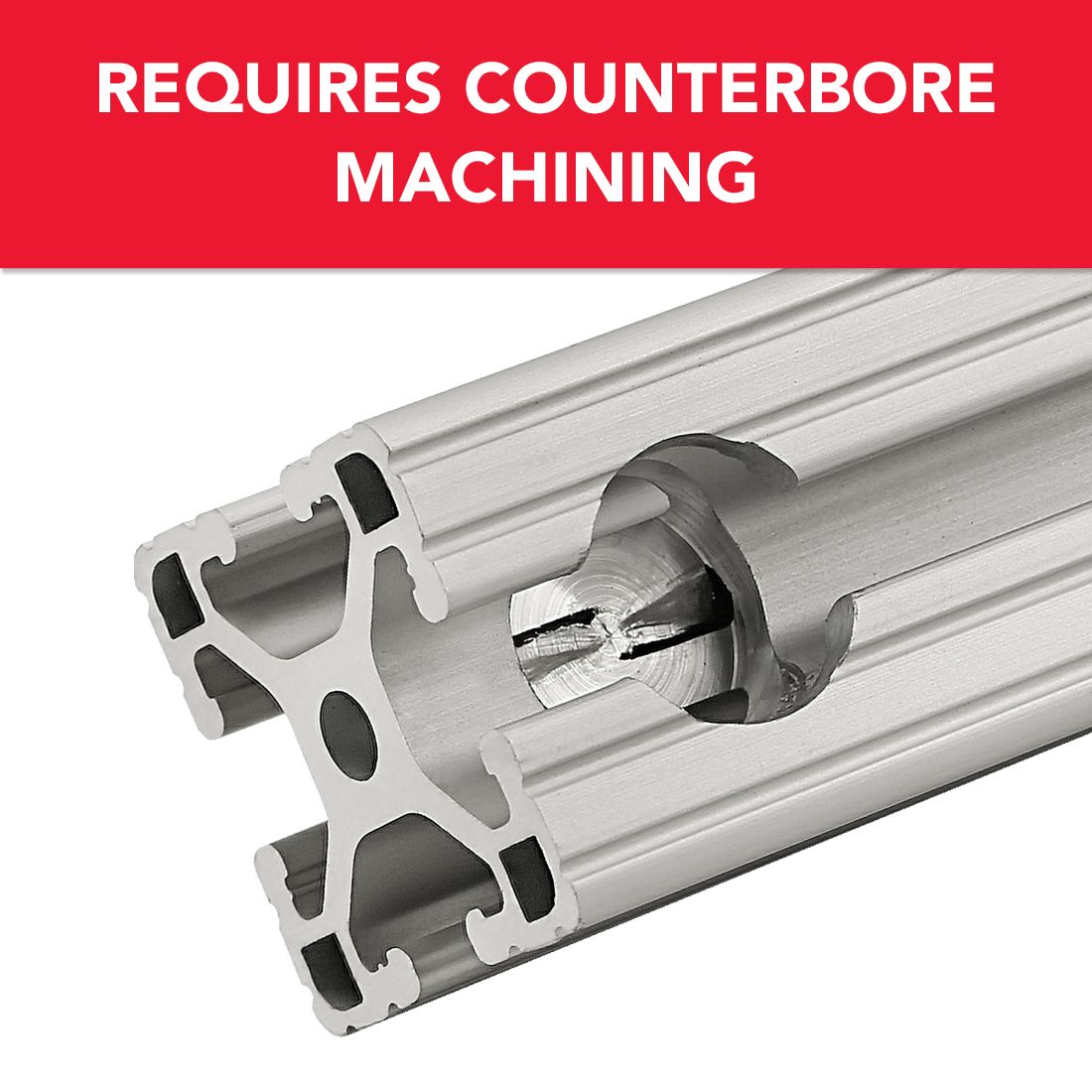

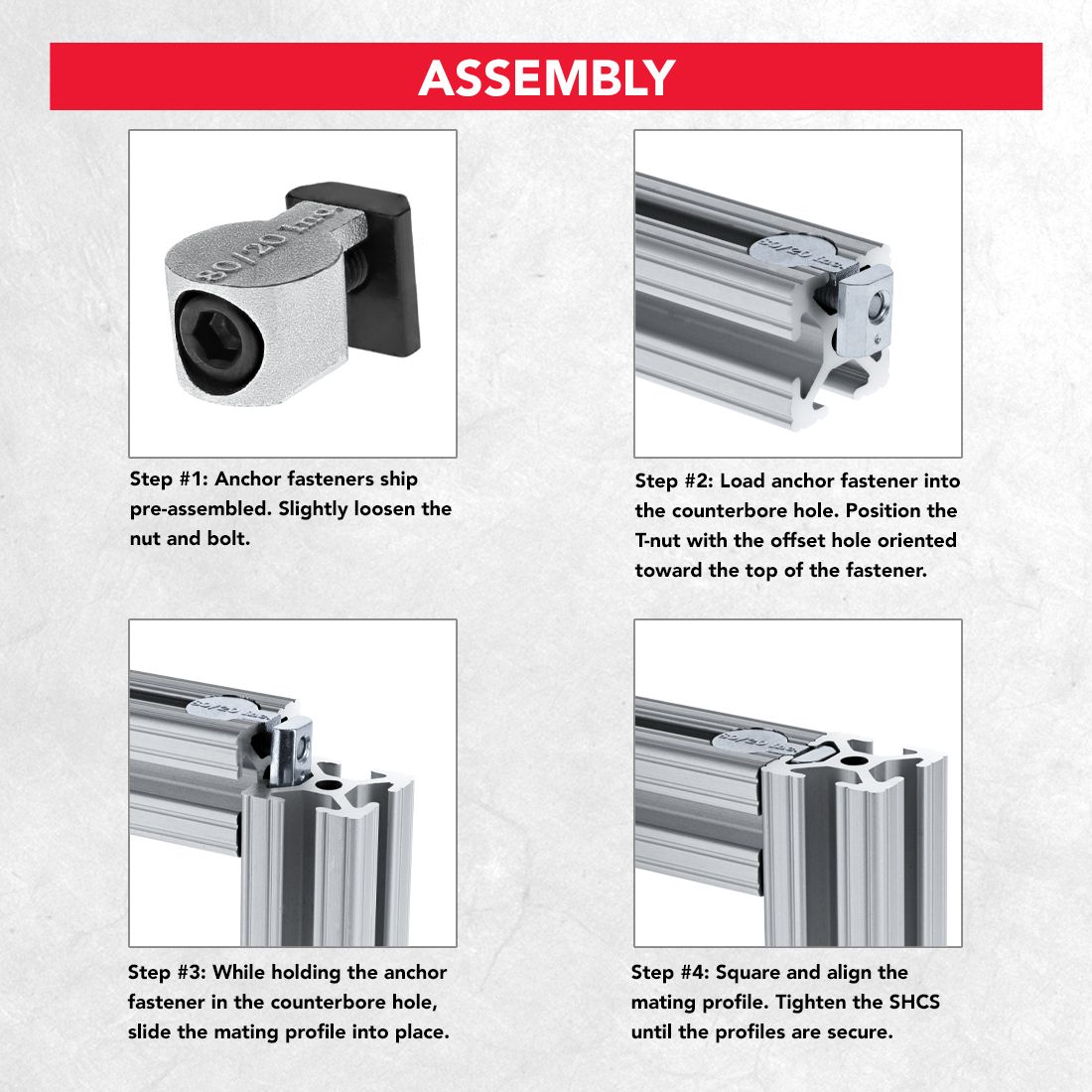

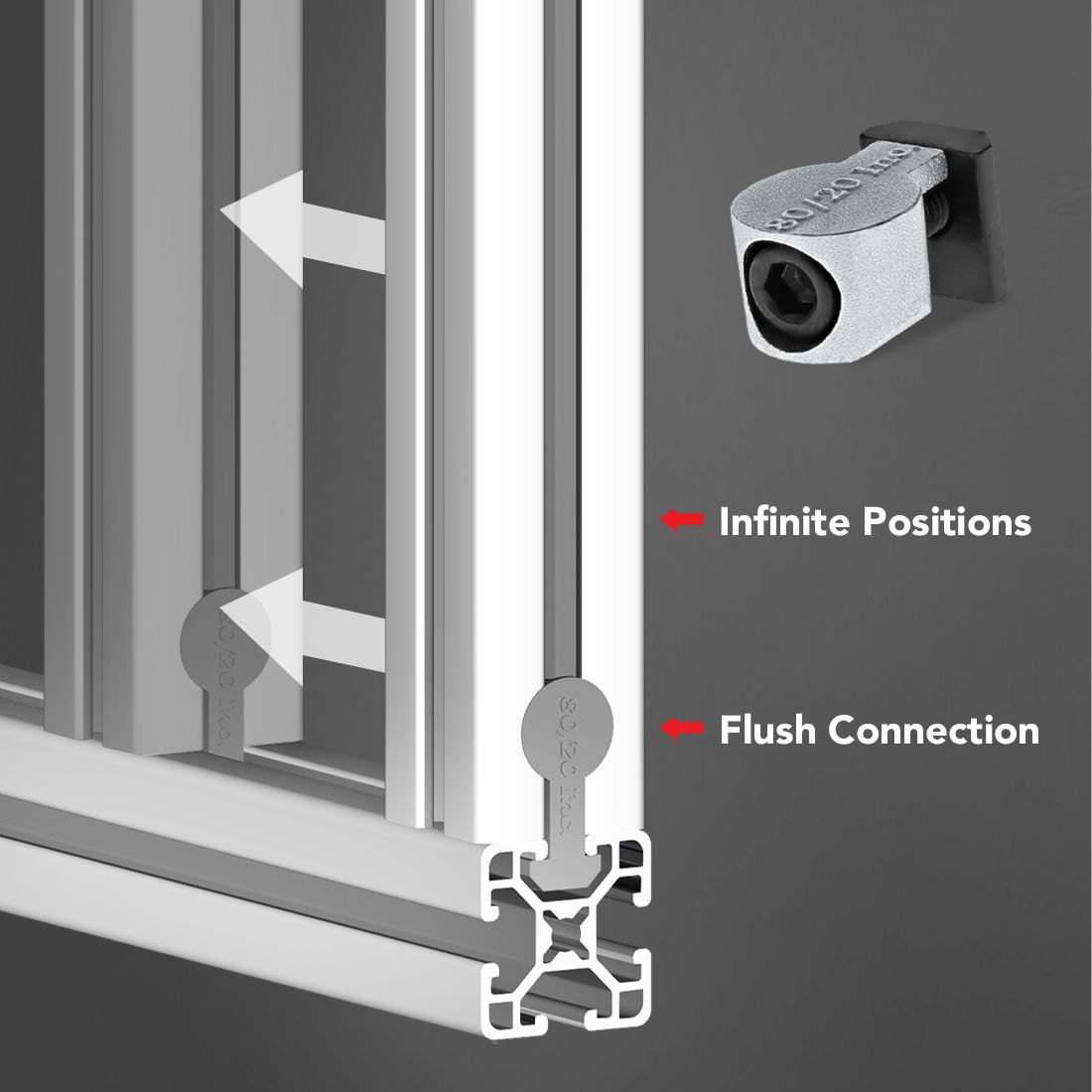

The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.

Series 10 Series
T-Nut Standard Slide-in
Material Zinc
Cam Color Bright
Color No
A .730"
B .245"
C .431"
D .171"
E .562"
F .490"
G .406"
H 10-32 X .75" SHCS
Weight 0.0310
