3380 (3379 + 3118)
338015 S End Fastener w/ 5/16-18 BHSCS

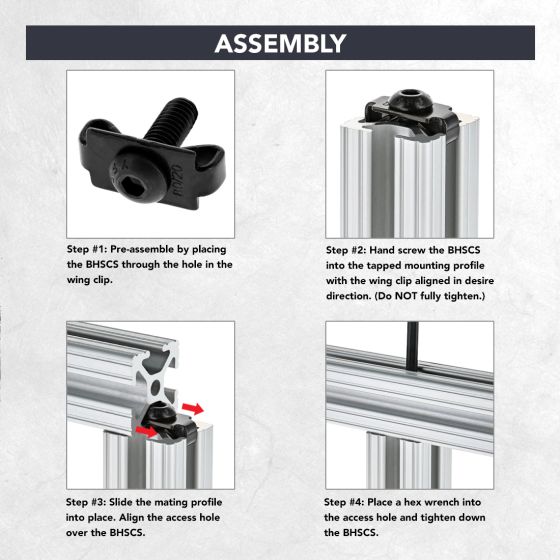

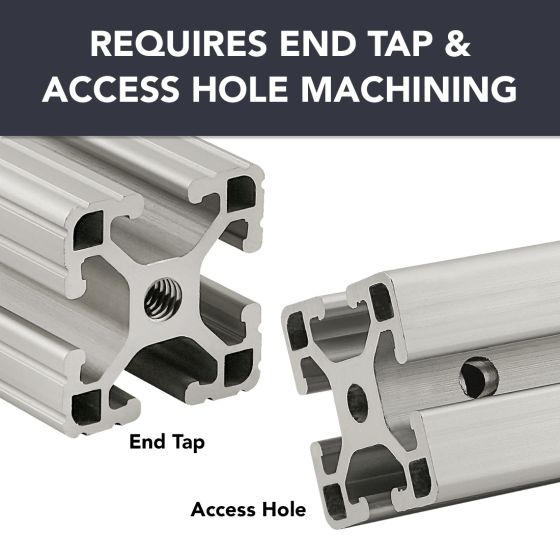

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head. Additional Information: Wing clips are available separately (without the button head socket cap screw) for instances where you want to create your own custom assembly.
| Part Number | Qty | Description |
|---|---|---|
| 3379 | 1 | 15 Series Standard End Fastener Clip |
| 3118 | 1 |
5/16-18 X 1.000" BHSCS |
| Series | 15 Series |
| Type | Assembly |
| Material | Steel |
| Color | Black |
| A | .625" |
| B | .450" |
| C | .300" |
| D | .340" |
| E | 1.300" |
| F | 1.000" |
| G | 5/16-18 |
| H | 1.000" |
| Weight | 0.0470 |
