3060 - 3.00" X 6.00" T-Slotted Profile - Twelve Open T-Slots
3060-723060 - 3.00" X 6.00" T-Slotted Profile - Twelve Open T-Slots

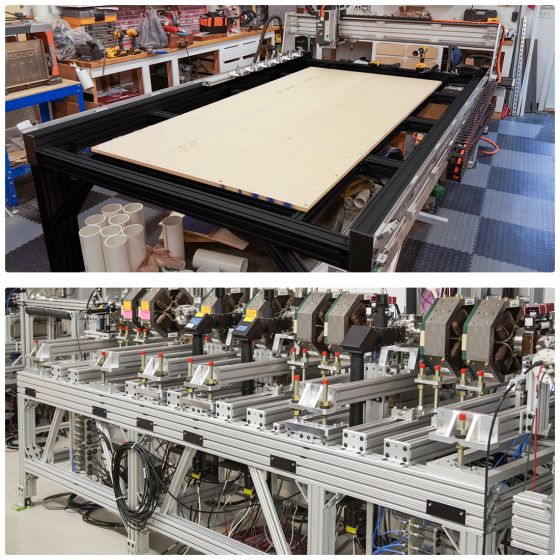

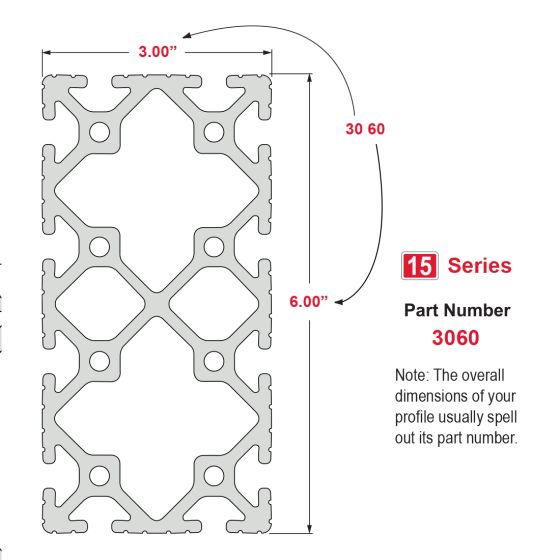

3060 is a 3.00” x 6.00” fractional 15 series rectangular T-slot profile with twelve open T-slots, two on each 3.00” face and four on each 6.00” face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 3060 profile is the largest fractional profile offered by 80/20, is compatible with 15 series fasteners, and has center cavities that can be pressurized up to 150 psi. The twelve open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
Series | 15 Series |
Material | Aluminum |
Grade | 6063-T6 |
Finish | Anodize |
Color | Clear |
Drop Lock | 2° |
Moment of Inertia - IX | 22.0300⁴ |
Moment of Inertia - IY | 6.5164⁴ |
Surface Area | 5.963 Sq In. |
Yield Strength | 25,000 psi |
Modulus of Elasticity | 10,000,000 Lbs. / Sq. In. |
Weight lbs | 0.5815 per inch |
Weight | 0.581500 |
