14011 2-Hole Pivot Joint

14011
  • $23.96


Due to COVID-19, orders may take longer then normal to ship

2 Hole Pivot Joint

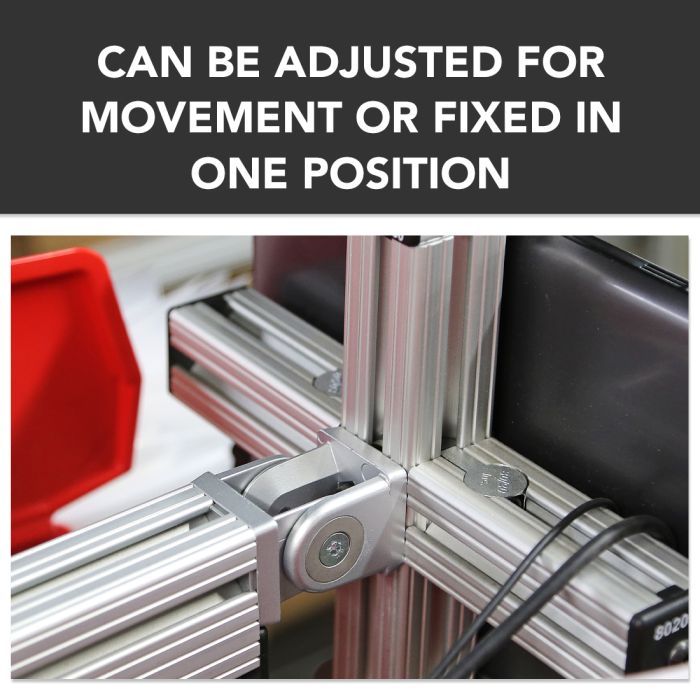

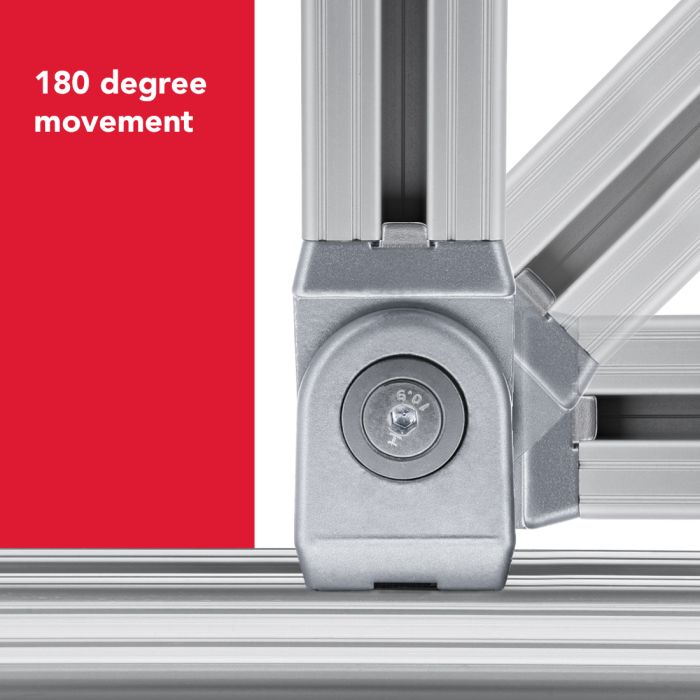

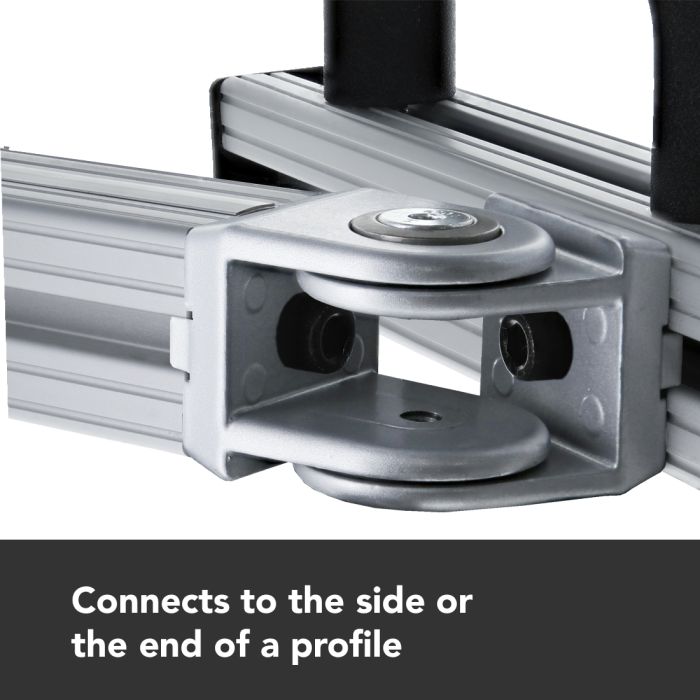

The 2 hole - pivot joint is an external fastening method that is lightweight yet sturdy. This connector can either mount to the end of a profile, which would require and end tap, or the slot tabs can be removed for mounting directly to the T-slot without any required machining services. The screws on the arms can be adjusted for movement or fixed in one position. Use pliers to take off unwanted tabs.

NOTE: DOES NOT INCLUDE HARDWARE

Suggested Hardware:
10 Series, Mount to T-Slot Part #3491, Qty: 2, Bolt Assembly: 1/4-20 x .500" Black SHCS and Slide-In Economy T-Nut - Centered Thread
10 Series, Mount to Profile End Part #3064, Qty: 2, 1/4-20 x .750" Socket Head Cap Screw (SHCS)

Series 10 Series, 25 Series
Material Zinc
Process Die Cast
Finish Powder Coat
A 28.00mm
B 14.00mm
C 6.60mm
D 14.00mm
E 28.00mm
F 49.00mm
G 2.00mm
H 1.00mm
J 25.00mm
K 29.20mm
L 9.50mm
M 6.00mm
Weight 0.2700
