14079 - 40 Series 2 Hole- 39mm Slotted Inside Corner Bracket with Dual Support *30% OFF*

14079
  • $3.29


Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

14079 - 40 Series 2 Hole- 39mm Slotted Inside Corner Bracket with Dual Support *30% OFF*

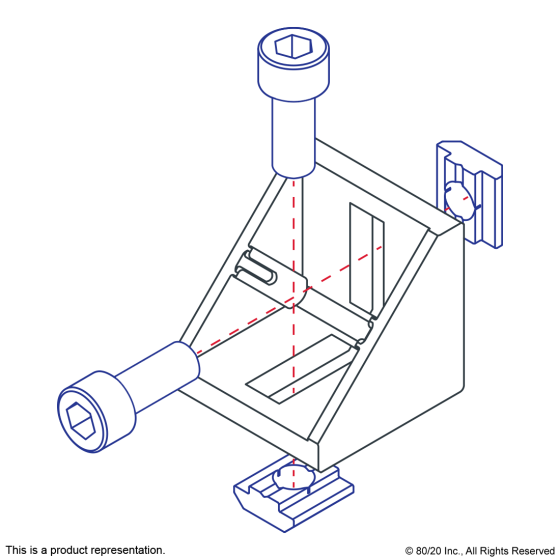

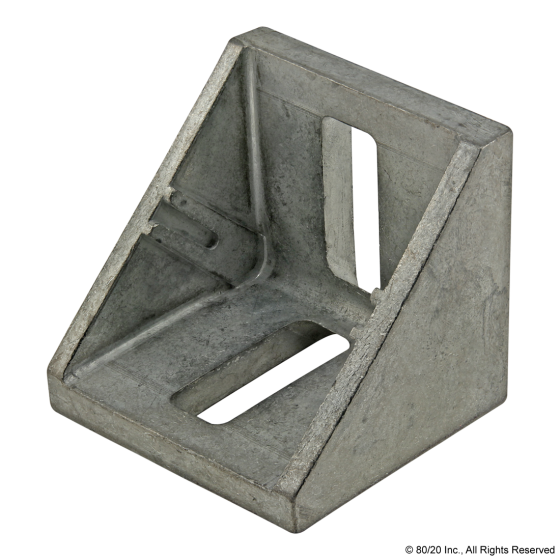

The 2 hole - 39mm slotted inside corner bracket with dual support is an external, die-cast fastening method that creates a 90 degree connection. The dual support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.

Series 40 Series
Material Zinc
Finish Natural

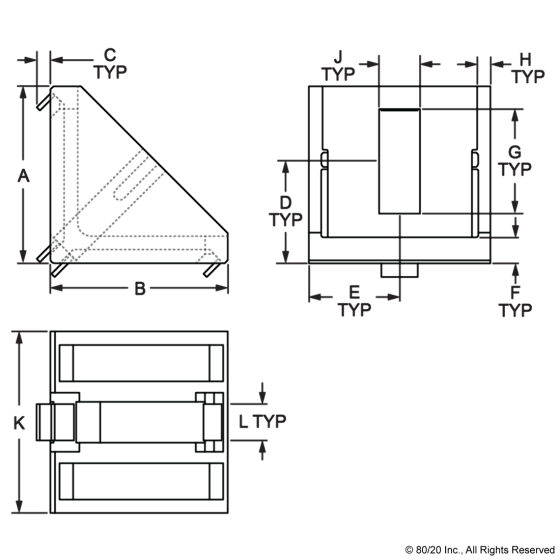

A 39.00mm
B 39.00mm
C n/a
D 22.47mm
E 20.00mm
F 6.00mm
G 23.05mm
H 3.00mm
J 9.00mm
K 40.00mm
L n/a
Weight 0.209000
