3075 - 3.00” X .75” Smooth Surface T-Slotted Profile - Two Adjacent Open T-Slots

3075-24
  • $31.40


Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

3075 - 3.00” X .75” Smooth Surface T-Slotted Profile - Two Adjacent Open T-Slots

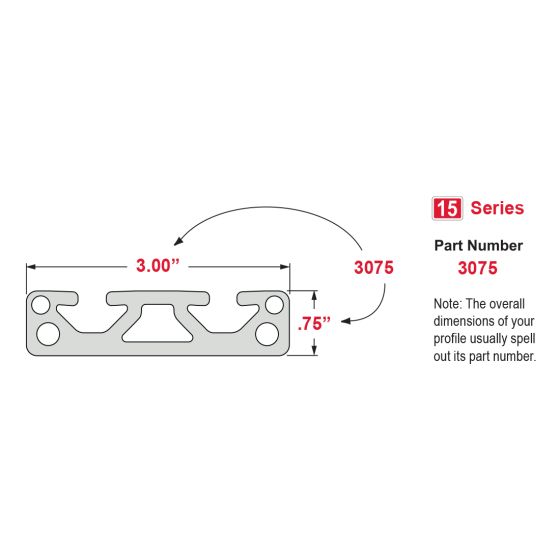

3075 is a 3.00” x 0.75” fractional 15 series rectangular T-slot profile with two adjacent open T-slots, two on one 3.00” face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 3075 profile is compatible with 15 series fasteners. It is a thinner profile that connects easily to flat surfaces and works well as a supporting structure or spacer for mounting accessories such as handles, door tracks, rails, valves or sensors.

Max Length (inches) 120.000000
Series 15 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
Drop Lock
Moment of Inertia - IX 1.0672"⁴
Moment of Inertia - IY 0.0789"⁴
Surface Area 1.320 Sq. in.
Yield Strength 25,000 psi
Modulus of Elasticity 10,000,000 Lbs. / Sq. In.
Weight lbs 0.1287 per inch
Weight 0.128700
