1575 - 1.5” X .75” T-Slotted Extrusion

1575-24
  • $14.37


Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

1575 - 1.5” X .75” T-Slotted Extrusion

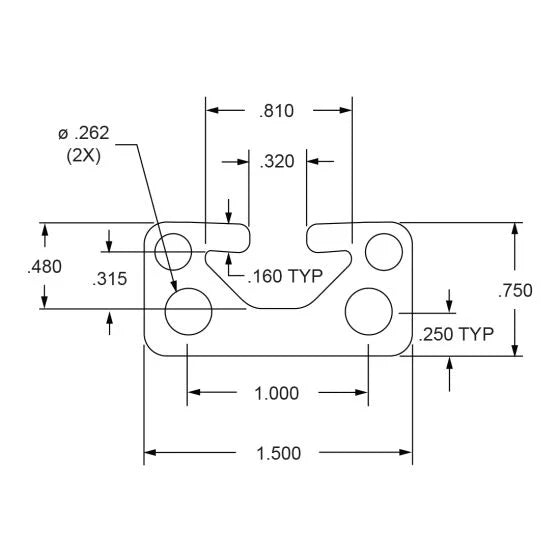

1575 is a 1.50" x 0.75" fractional 15 series rectangular T-slot profile with one open T-slot on one 1.50" face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1575 profile is compatible with 15 series fasteners. It is a thinner profile that connects easily to flat surfaces and works well as a supporting structure or spacer for mounting accessories such as handles, door tracks, rails, valves or sensors.

USA Made from 80/20 Inc

Series 15 Series
Material Aluminum
Grade 6105-T5
Finish Anodize
Color Clear
Drop Lock
Moment of Inertia - IX 0.0380"⁴
Moment of Inertia - IY 0.1470"⁴
Surface Area 0.686 Sq. in.
Yield Strength 35,000 psi.
Modulus of Elasticity 10,200,000 Lbs / Sq. In.
Weight lbs 0.0669
Weight 0.0669
