1530 - 1.5” X 3” T-Slotted Extrusion

1530-24
  • $45.57


Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

1.5” X 3” T-Slotted Extrusion

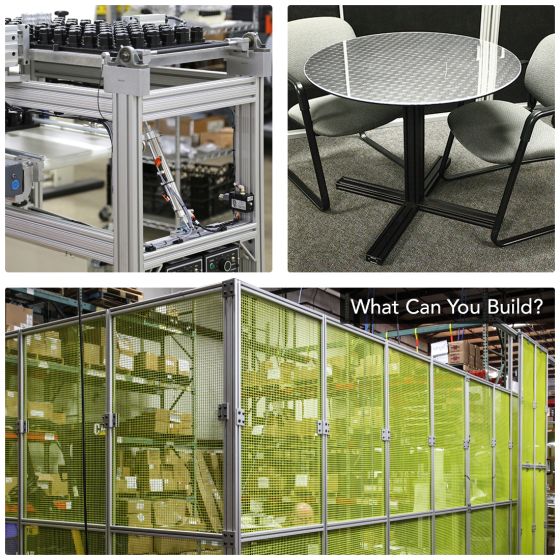

1530 is a 1.50" x 3.00" fractional 15 series rectangular T-slot profile with six open T-slots, two on each 3.00" face and one on each 1.50" face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1530 profile is compatible with 15 series fasteners. The center cavity of the profile can be pressurized up to 150 psi, lending itself to work spaces, machine guards, displays and panel mount racks.

USA Made from 80/20 Inc

Series 15 Series
Material Aluminum
Grade 6105-T5
Finish Anodize
Color Clear
Drop Lock
Moment of Inertia - IX 1.8042"⁴
Moment of Inertia - IY 0.4824"⁴
Surface Area 2.077 Sq. In.
Yield Strength 35,000 psi.
Modulus of Elasticity 10,200,000 Lbs / Sq. In.
Weight lbs .2025
Weight 0.2025
