1502-LS - 1.5” X 1.5" Lite Smooth Surface T-Slotted Profile - Two Adjacent Open T-Slots
1502-LS - 1.5” X 1.5" Lite Smooth Surface T-Slotted Profile - Two Adjacent Open T-Slots
1502-LS - 1.5” X 1.5" Lite Smooth Surface T-Slotted Profile - Two Adjacent Open T-Slots
1502-LS - 1.5” X 1.5" Lite Smooth Surface T-Slotted Profile - Two Adjacent Open T-Slots
1502-LS - 1.5” X 1.5" Lite Smooth Surface T-Slotted Profile - Two Adjacent Open T-Slots
1502-LS - 1.5” X 1.5" Lite Smooth Surface T-Slotted Profile - Two Adjacent Open T-Slots
1502-LS - 1.5” X 1.5" Lite Smooth Surface T-Slotted Profile - Two Adjacent Open T-Slots

1502-LS - 1.5” X 1.5" Lite Smooth Surface T-Slotted Profile - Two Adjacent Open T-Slots

1502-LS-24
Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

1502-LS - 1.5” X 1.5" Lite Smooth SurfaceT-Slotted Profile - Two Adjacent Open T-Slots

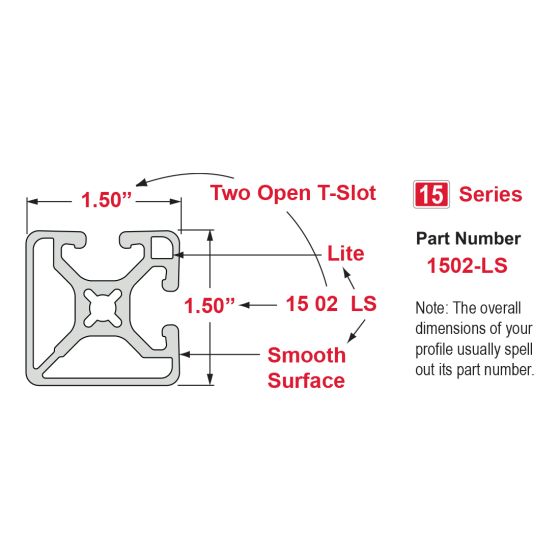

1502-LS is a 1.50” x 1.50” lite fractional 15 series square T-slot profile with two adjacent open T-slots, one on two 1.50” faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1502-LS profile is compatible with 15 series fasteners. The two closed faces on this profile provide a clean, aesthetic look and lends itself to furniture, displays, desks, trade show booths, or retail kiosks.



Max Length (inches) 242.000000
Series 15 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
Drop Lock 2°
Moment of Inertia - IX 0.1834"⁴
Moment of Inertia - IY 0.1834"⁴
Surface Area 0.832 Sq. In.
Yield Strength 25,000 psi
Modulus of Elasticity 10,000,000 Lbs. / Sq. In.
Weight lbs 0.0811 per inch
Weight 0.081100
