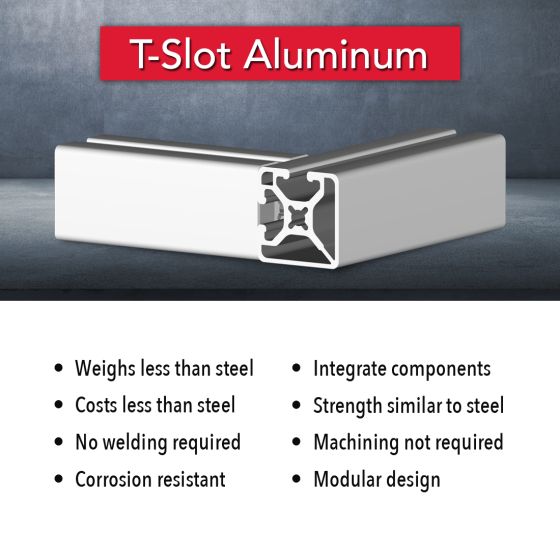

1501-LS - 1.5” X 1.5” Lite Smooth Surface T-Slotted Profile - Single Open T-Slots
1501-LS - 1.5” X 1.5” Lite Smooth Surface T-Slotted Profile - Single Open T-Slots

1501-LS - 1.5” X 1.5” Lite Smooth Surface T-Slotted Profile - Single Open T-Slots

1501-LS-24
Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

1501-LS - 1.5” X 1.5” Lite Smooth Surface T-Slotted Profile - Single Open T-Slots

1501-LS is a 1.5” x 1.5” lite fractional 15 series square T-slot profile with one open T-slot on one 1.50” face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1501 profile is compatible with 15 series fasteners. The three closed faces on this profile provides a clean, aesthetic look and lends itself to furniture, displays, desks, trade show booths, or retail kiosks.

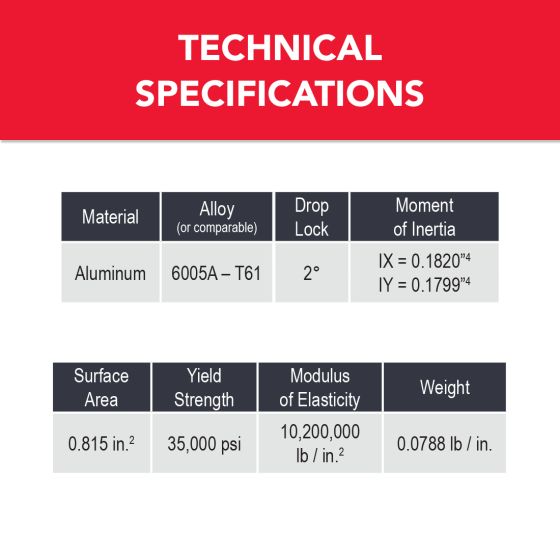

Series 15 Series
Material Aluminum
Grade 6105-T5
Finish Anodize
Color Clear
Drop Lock 2°
Moment of Inertia - IX 0.1820"⁴
Moment of Inertia - IY 0.1799"⁴
Surface Area 0.815 Sq. In.

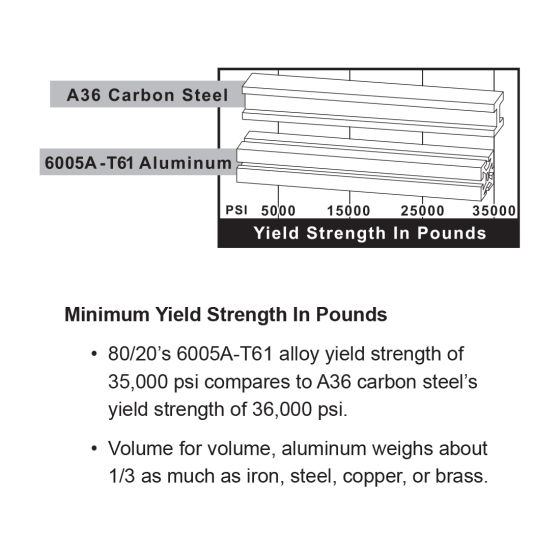

Yield Strength 35,000 psi.
Modulus of Elasticity 10,200,000 Lbs / Sq. In.
