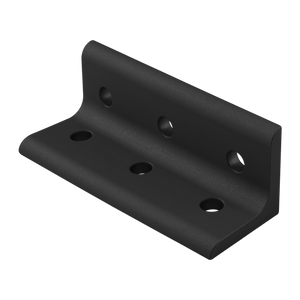

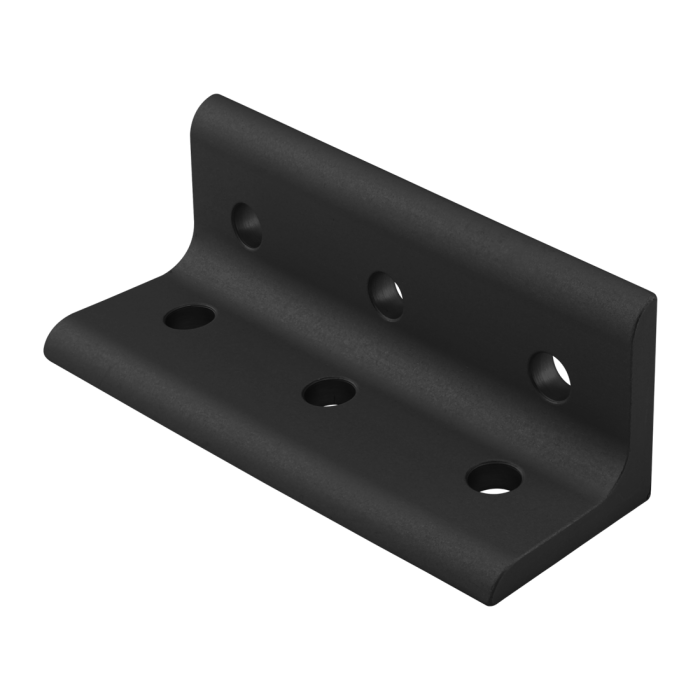

4415-Black 15 Series 6 Hole - Wide 3x3 Inside Corner Bracket

$18.77

Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

4415-Black 15 Series 6 Hole - Wide 3x3 Inside Corner Bracket

The 6 hole - wide 3x3 inside corner bracket is an external fastening method that creates a 90 degree connection. There are three adjacent holes on each side of the bracket. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.

USA Made from 80/20 Inc

NOTE: DOES NOT INCLUDE HARDWARE

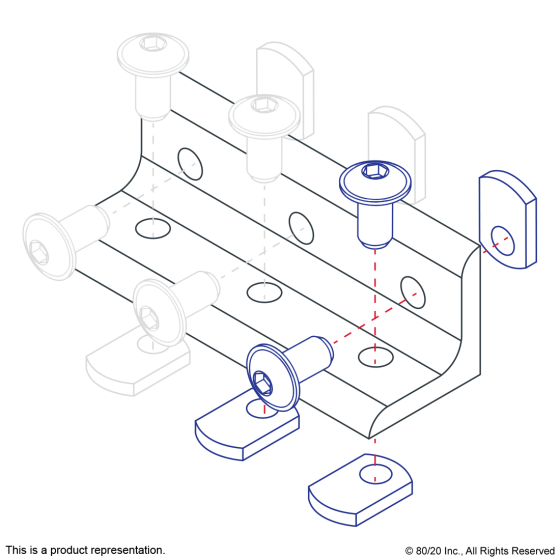

Suggested Hardware:

Part Number	Qty	Description
3320	6	Bolt Assembly: 5/16-18 X .687" Black FBHSCS With Slide-In Economy T-Nut - Offset Thread - Black Zinc

Series	15 Series
Material	Aluminum
Grade	6063-T6
Finish	Anodize
Color	Black

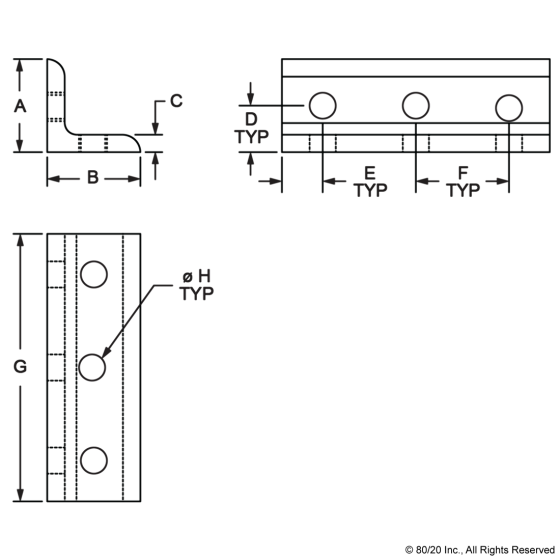

A	1.500”
B	1.500”
C	.250"
D	.750"
E	.656"
F	1.500"
G	4.310"
H	.328"
Weight	0.268000
