4307 - 15 Series 2 Hole - Straight Flat Plate *20% OFF APPLIED AT CHECKOUT*

4307
  • $6.98


Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

4307 - 15 Series 2 Hole - Straight Flat Plate

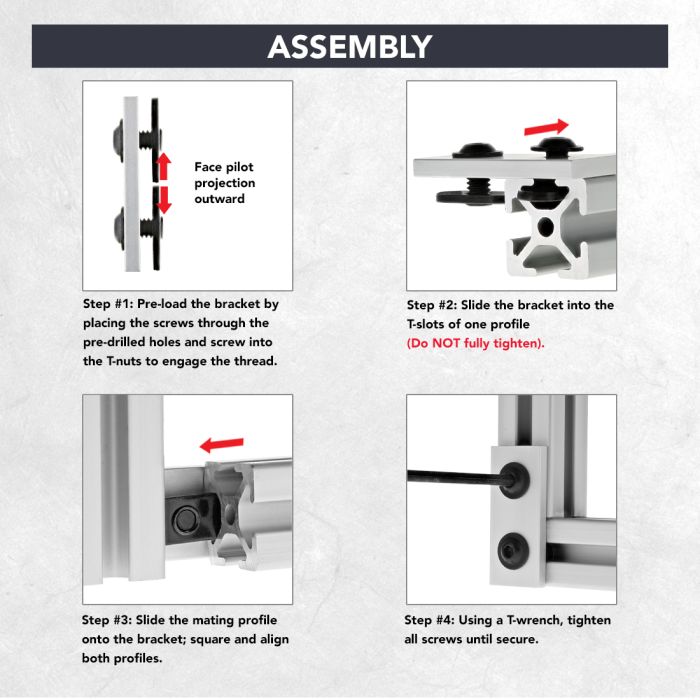

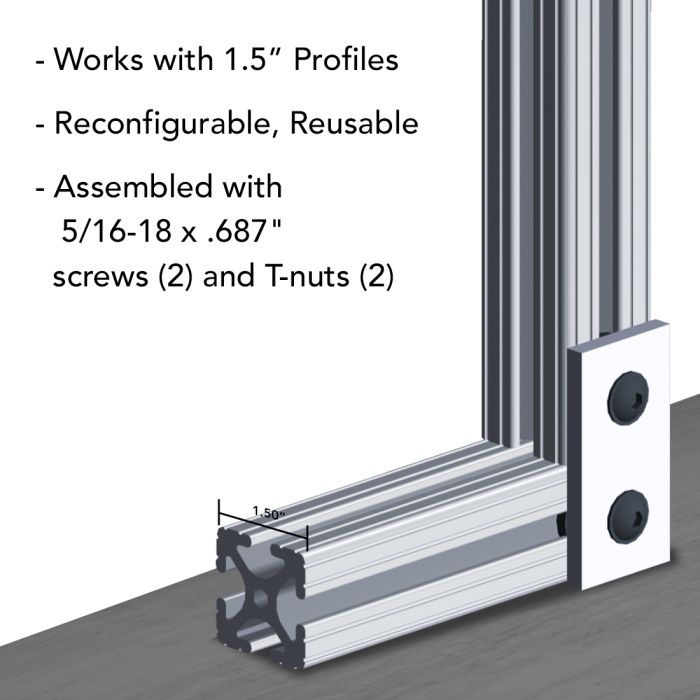

The 2 hole - straight flat plate is an external fastening method that requires no machining services. It is a durable connection that can be easily repositioned and reused. This flat plate can provide infinite positioning along the profile T-slot, allowing for a large degree of adjustability. It engages the 2-degree drop-lock feature for most profile series when the assembly bolts are tightened to the required torque, creating a strong connection. Tip: Pre-load your hardware prior to connecting profiles to simplify your assembly and save time.

USA Made from 80/20 Inc

NOTE: DOES NOT INCLUDE HARDWARE

Suggested Hardware:

Part Number Qty Description
3320 2

Bolt Assembly: 5/16-18 X .687" Black FBHSCS With Slide-In Economy T-Nut - Offset Thread - Black Zinc



Series 15 Series, Ready Tube
Material Aluminum
Grade 6105-T5
Finish Anodize
Color Clear
A 3.000”
B 1.490"
C 1.500"
D .750"
E .745"
F .328"
G .250"
Weight 0.1030
