4301 - 15 Series & Ready Tube 4 Hole - Tall Inside Corner Bracket

4301
  • $8.68


Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

4301 - 15 Series & Ready Tube 4 Hole - Tall Inside Corner Bracket

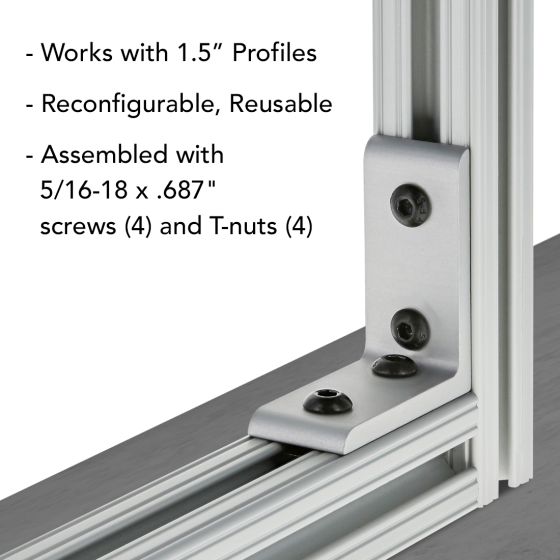

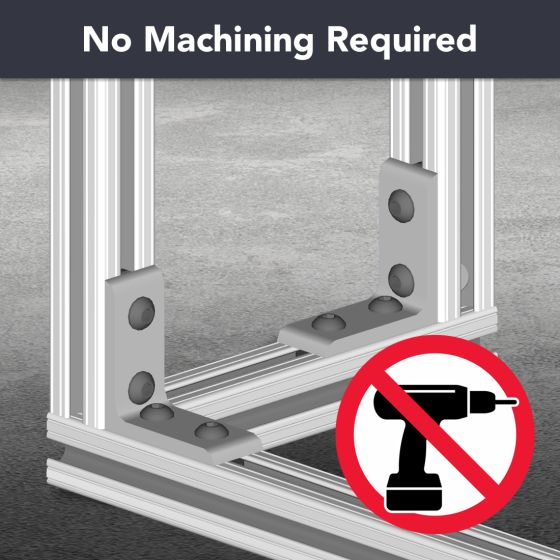

The 4 hole - tall inside corner bracket is an external fastening method that creates a 90 degree connection. Each side of the bracket has two holes stacked one on top of the other. This fastener requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The 4 hole - tall inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.

USA Made from 80/20 Inc

NOTE: DOES NOT INCLUDE HARDWARE

Suggested Hardware:

Part Number Qty Description
3320 4

Bolt Assembly: 5/16-18 X .687" Black FBHSCS With Slide-In Economy T-Nut - Offset Thread - Black Zinc



Series 15 Series, Ready Tube
Material Aluminum
Grade 6105-T5
Finish Anodize
Color Clear
A 3.000”
B 3.000"
C .250"
D .750"
E .655"
F 1.500"
G 1.310"
H .328"
Weight 0.1760
