20-2040 - 20mm X 40mm T-Slotted Extrusion
20-2040 - 20mm X 40mm T-Slotted Extrusion

20-2040 - 20mm X 40mm T-Slotted Extrusion

20-2040-995
Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

20-2040 - 20mm X 40mm T-Slotted Extrusion

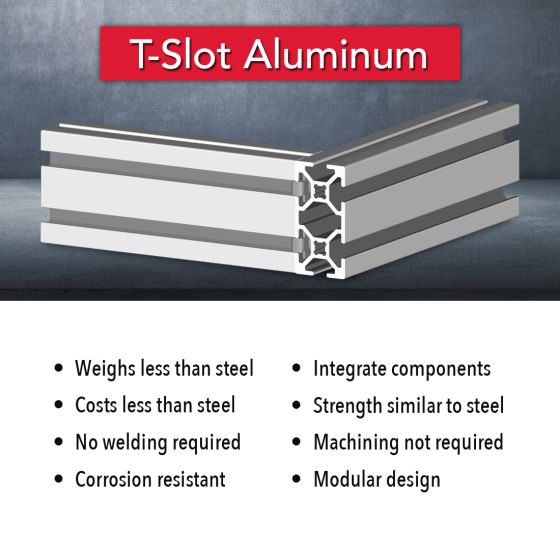

20-2040 is a 20mm x 40mm metric 20 series rectangular T-slot profile with six open T-slots, two on each 40mm face and one on each 20mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 20-2040 profile is compatible with 20 series fasteners. It is a part of the smallest profile series 80/20 offers, lending itself to work spaces, machine guards, displays and panel mount racks.

USA Made from 80/20 Inc

Series 20 Series
Material Aluminum
Grade 6105-T5
Finish Anodize
Color Clear
Drop Lock 2°
Moment of Inertia - IX 4.5357 cm⁴
Moment of Inertia - IY 1.2133 cm⁴
Surface Area 2.750 Sq cm
Yield Strength 241.1 N/ Sq. mm
Modulus of Elasticity 70,326.5 N/Sq. mm
Weight lbs 0.0415
Weight 0.5815
