1517-LS - 1.50” X 1.50” Lite Smooth Surface Quarter Round T-Slotted Profile - Two Open T-Slots

1517-LS-24
  • $26.18


Orders ready to ship/pick up in approx 2-4 business days from Abbotsford, BC

1517-LS - 1.50” X 1.50” Lite Smooth Surface Quarter Round T-Slotted Profile - Two Open T-Slots

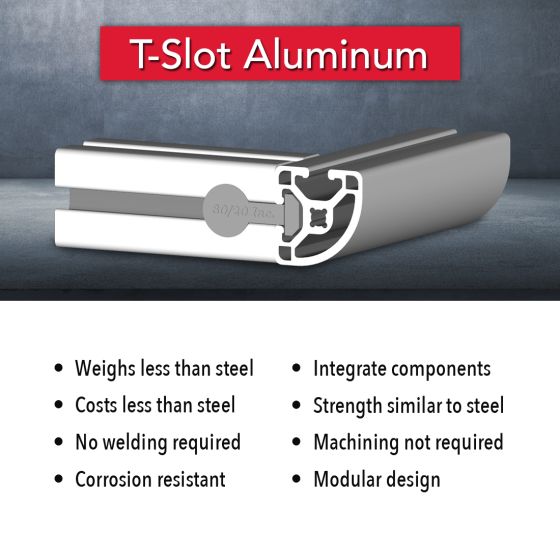

1517-LS is a 1.50” x 1.50” lite fractional 15 series quarter round T-slot profile with a 1.123” radius curved back and two open T-slots, one on each of the 1.50” profile faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1517-LS profile is compatible with 15 series fasteners. This profile lends itself to large workstations and displays because it provides an aesthetic appearance and panels or other support structures can be easily placed in the T-slots.

Max Length (inches) 242.000000
Series 15 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
Drop Lock
Moment of Inertia - IX 0.1686"⁴
Moment of Inertia - IY 0.1686"⁴
Surface Area 0.748 Sq. In.
Yield Strength 25,000 psi
Modulus of Elasticity 10,000,000 Lbs. / Sq. In.
Weight lbs 0.0729 per inch
Weight 0.072900
