1504-LS - 1.50” X 1.50” Lite Smooth Surface T-Slotted Profile - Two Opposite Open T-Slots

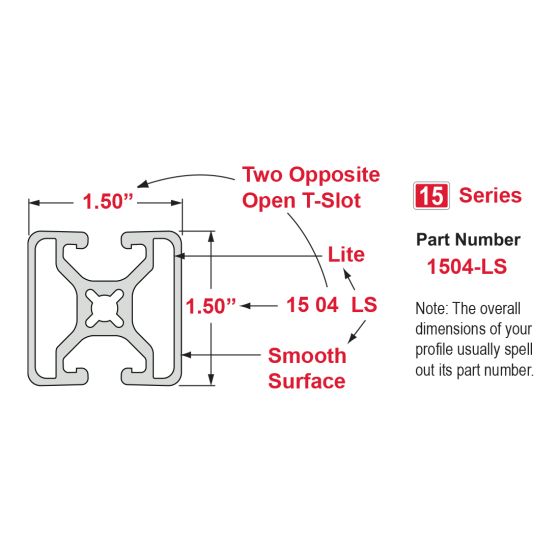

1504-LS is a 1.50” x 1.50” lite fractional 15 series square T-slot profile with two opposite open T-slots, one on two 1.50” faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1504-LS profile is compatible with 15 series fasteners. The placement of the T-slots allows support structures or panels to be easily placed into them and lends itself to guarding, furniture or displays.

Max Length (inches) 242.000000
Series 15 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
Drop Lock 2°
Moment of Inertia - IX 0.1796"⁴
Moment of Inertia - IY 0.1759"⁴
Surface Area 0.815 Sq. In.
Yield Strength 25,000 psi
Modulus of Elasticity 10,000,000 Lbs. / Sq. In.
Weight lbs 0.0795 per inch
Weight 0.079500
