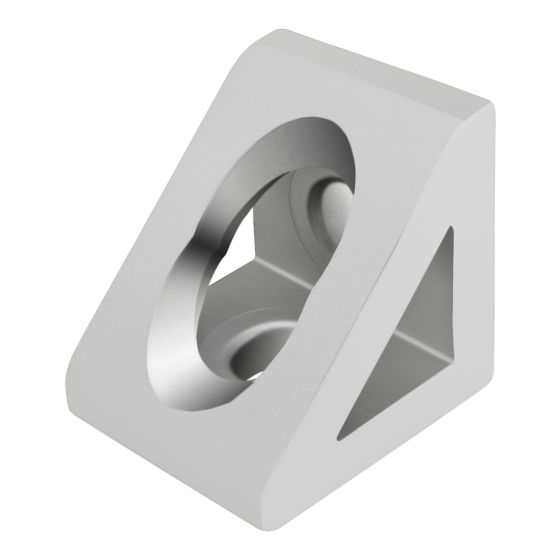

4132 - 10 Series 2 Hole - Gusseted Inside Corner Bracket
41324132 - 10 Series 2 Hole - Gusseted Inside Corner Bracket

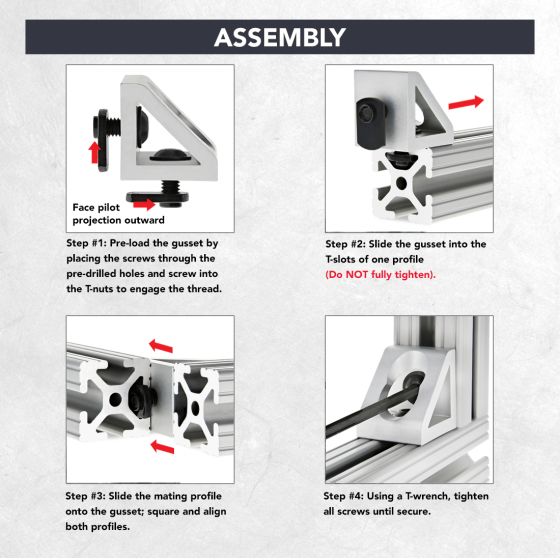

The 2 hole - gusseted inside corner bracket is a strong, external fastening method that creates a 90 degree connection. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The shape of the gusset provides extra material, strengthening the connection. The 2 hole - gusseted inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.
USA Made from 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE

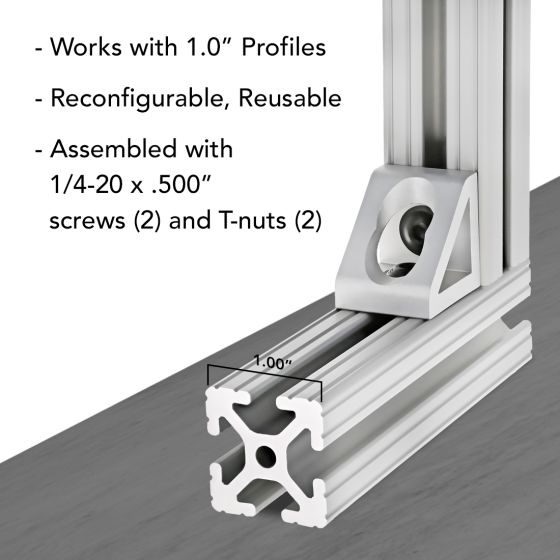

Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
|
3393 |
2 |
1/4-20 X 1/2” BHSCS, ECON T-NUT |
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| A | 1.000" |
| B | 1.000" |
| C | .188" |
| D | .438" |
| E | .500" |
| F | .875" |
| G | .500" |
| H | .281" |
| Weight | 0.0350 |
