2012 - 2.00” X .50” T-Slotted Profile - Two Adjacent Open T-Slots

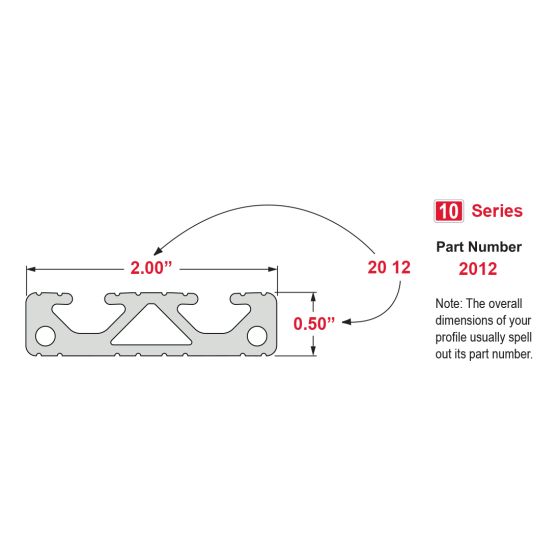

2012 is a 2.00” x 0.50” fractional 10 series rectangular T-slot profile with two adjacent open T-slots on a 2.00” face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 2012 profile is compatible with 10 series fasteners. It is a thinner profile that connects easily to flat surfaces and works well as a supporting structure or spacer for mounting accessories such as handles, door tracks, rails or valves.

Series 10 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
Drop Lock 2°
Moment of Inertia - IX 0.2253”⁴
Moment of Inertia - IY 0.0146”⁴
Surface Area 0.564 Sq. In.
Yield Strength 25,000 psi
Modulus of Elasticity 10,000,000 Lbs. / Sq. In.
Weight lbs 0.0550 per inch
Weight 0.055000
